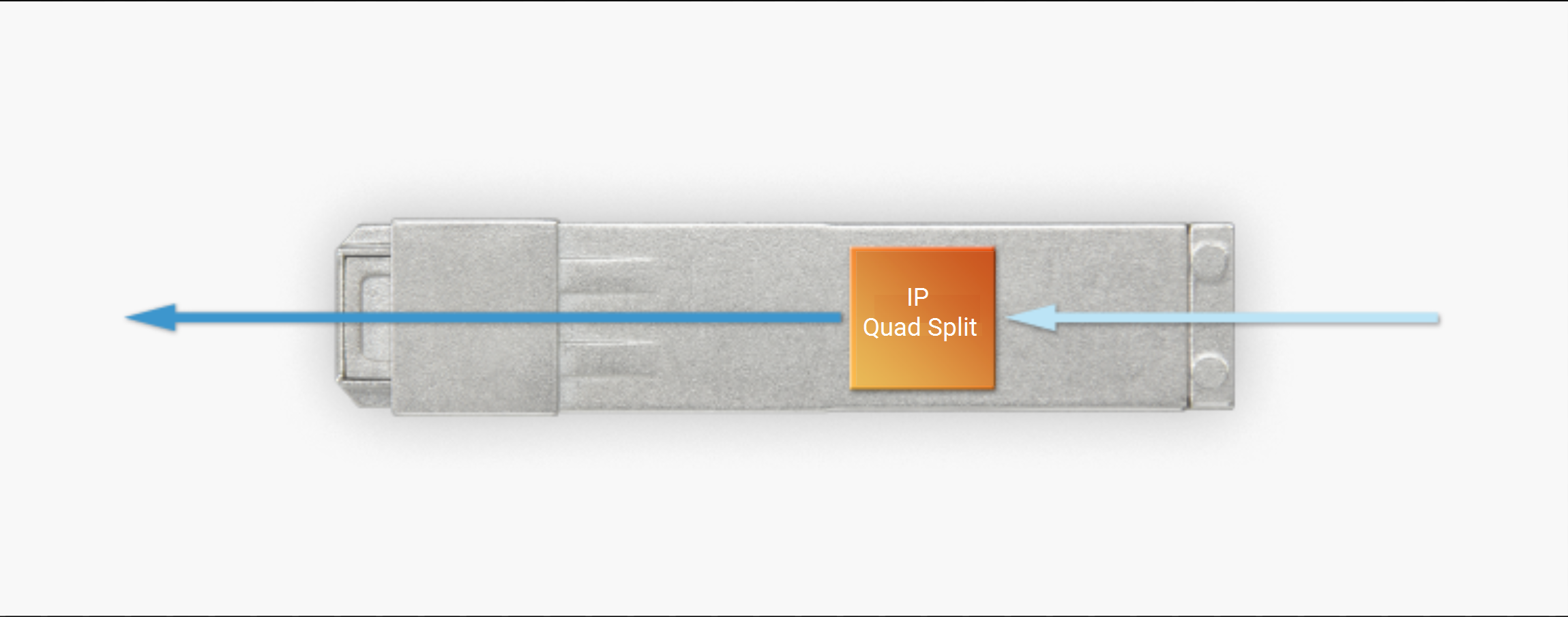

The all new emSFP-QUAD is installed directly inside an IP switch and joins 4 video flows to create a quad split view output available on the HDMI connector. This mosaic view is also available as a new IP ST2110 streams on the network, this provides an access to the mosaic anywhere in the facility.
The quad processor can be configured with various layouts including quad split view, or each individual video full screen. Each video window is presented with text labels and tallies. Fine video details such as texts are rendered in a very precise matter thanks to the emSFP-QUAD built-in high-quality multi-tap scaling engine.
This emSFP-QUAD solution is assembled using an Embrionix Software Defined emSFP platform running the new OPT-QUAD software option.
