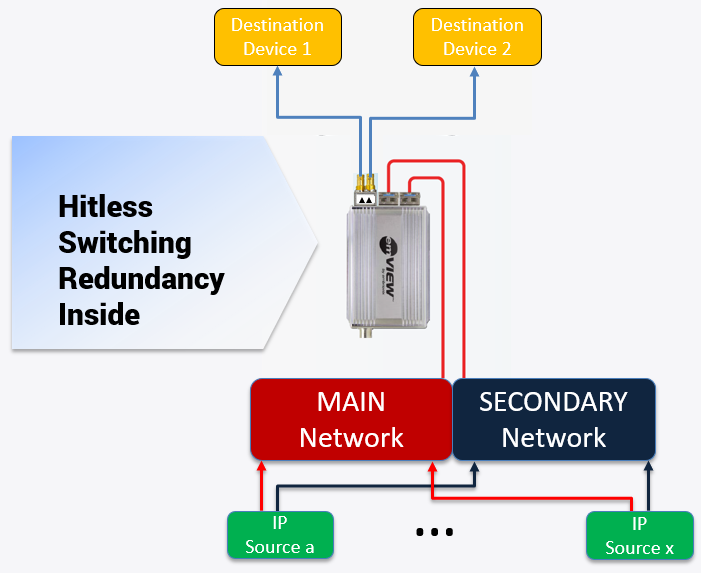

The emVIEW-7-SDI standalone IP Gateway De-encapsulator can be installed at the back of your monitor to convert two IP set of flows from the optical connector to SDI. The dual NIC interface Gateway can be connected to two independent networks for hitless redundancy support (ST2022-7). A single fiber optic link is required to receive ST2022-6 IP signals plus in-band control for a full optimization of cabling between the switch and your device.

Reconfigurable:
The modular design of the miniature frame allows the re-use of Software Defined emSFPs and can store up to 4 software options that can be loaded at any time via a simple command.

For ST2110 encapsulation or de-encapsulation, we recommend the use of the new UHD platform available through emFUSION-3-U and emFUSION-6-U
