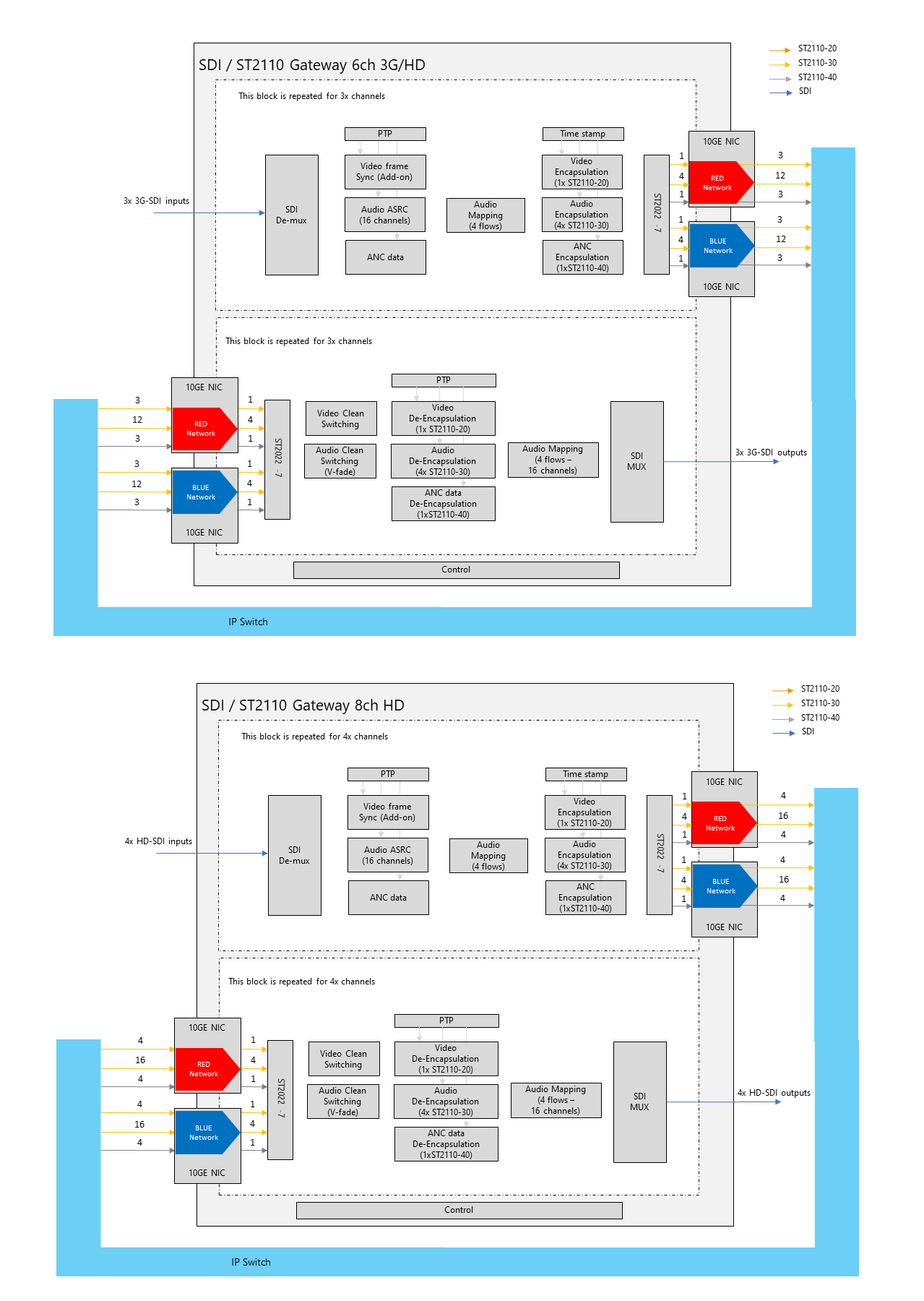

The ST2110 SoC Gateway converts up to 8x HD/3G-SDI signals to/from ST2110 set of flows via 10GE redundant interfaces. Configuration and IP flow routing can be achieved via SPI on the connector or it can be controlled via in-band through the network. The Gateway supports per channel one Video and Ancillary data flows (ST2110-20, ST2110-40) and 4 Audio flows (ST2110-30). The Gateway comes with the support of ST2022-7 hitless redundancy.

EB82SOC1-B-APP-10-2110-SDI-x allows 2x HD/3G-SDI channels supporting these configurations of Encap (E) and/or Decap (D):
[3G/HD] 2xE, or 2xD, or 1xE+1xD

This product can also be configured as single or dual channel Encapsulator using different software options, allowing up to 3x 3G-SDI Encap/Decap or 4x HD-SDI Encap/Decap. The Software Defined SoC can store up to 4 software options that can be loaded at any time via a simple command.

EB82S0C1-B-APP-ADD-2110-GW-2ch can be optionally added, allowing 2x additional HD/3G-SDI channels to support these configurations of Encap (E) and/or Decap (D):
[HD] 4xE, or 4xD, or 2xE+2xD, or 1xE+3xD, or 3xE+1xD
[3G] 3xE, or 3xD, or 2xE+2xD, or 1xE+3xD, or 3xE+1xD

EB82S0C1-B-APP-ADD-2110-GW-4ch can be optionally added, allowing 4x additional HD/3G-SDI channels to support these configurations of Encap (E) and/or Decap (D):
[HD] 4xE, or 4xD, or 3xE+3xD, or 2xE+4xD, or 4xE+2xD
[3G] 3xE+3xD

EB82S0C1-B-APP-ADD-2110-GW-4ch can be optionally added, allowing 6x additional HD/3G-SDI channels to support these configurations of Encap (E) and/or Decap (D):
[HD] 4xE+4xD
[3G] 3xE+3xD

** API and user guide available upon request (please contact Embrionix_Sales@riedel.net)
