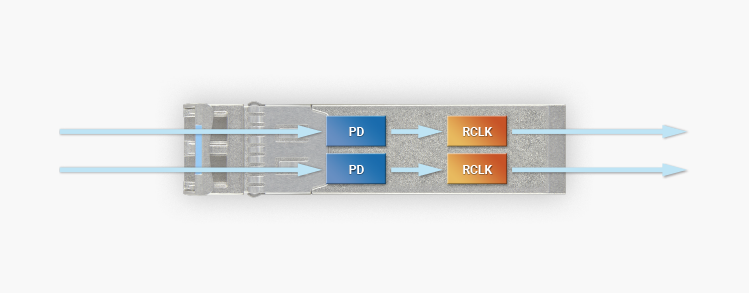

The video SFP EB12LC2R-MNR-P is a medium reach optic video SFP with built-in reclocker. This SFP is specifically designed to support pathological test patterns. This SFP is designed to receive two SDI signals (12G/6G-SDI) over single mode fiber (9um/125um) via LC connectors. The optical receivers inside are SMPTE compliant video. Inside the SFP, one reclocker per channel suppresses the accumlated jitter coming from the source.

Highlights:

+ SMPTE ST297-2015, ST2081 and ST2082 compliant
+ Supports 12G, 6G, 3G, HD, SD-SDI and DVB-ASI
+ Operating temperature from -5C to +85C
+ Extinction ratio higher than 8 dBm over temperature in accordance to ST297-2015, specification requires a minimum of 7 dBm
+ Distance up to 20 km with EB12LC2T-MNR-13F (tested with 12G-SDI pathological signal )
+ Distance up to 30 km with EB12LC2T-MNR-13F (tested with 12G-SDI colorbar signal )
+ Sensitivity better than -14 dBm with EB12LC2T-MNR-13F (tested with 12G-SDI colorbar signal)
+ Sensitivity better than -13 dBm with EB12LC2T-MNR-13F (tested with 12G-SDI pathological signal)
