12G/6G/3G/HD/SD-SDI UHD VIDEO COAXIAL SFP (emSFP)

OBSOLETE025

6G/3G/HD/SD-SDI UHD video SFP (emSFP) coaxial, dual transmitter, short reach, non-MSA, HD-BNC

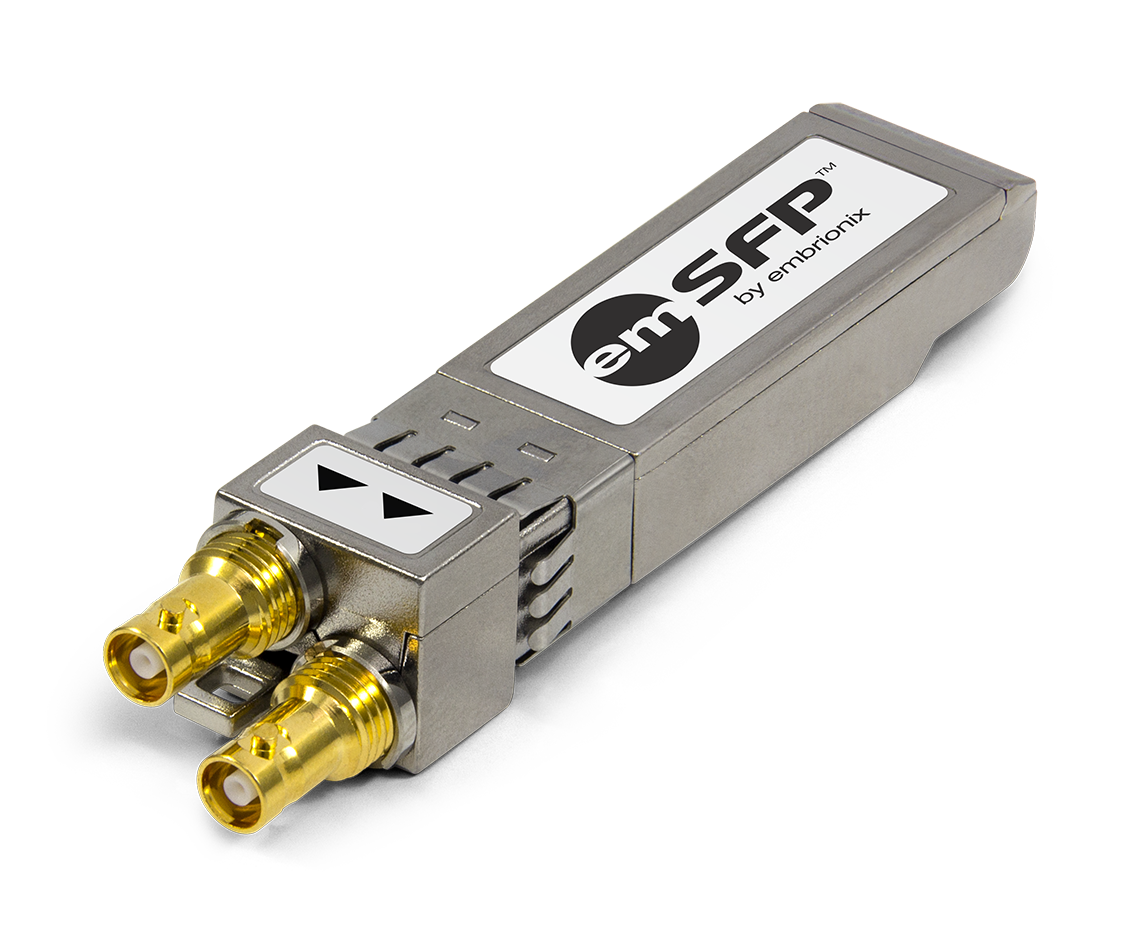

The video SFP (emSFP) EB59HD2T-SN is a short reach coaxial video SFP (emSFP)
This SFP (emSFP) is specifically design to support pathological test patterns.
This SFP (emSFP) is designed to transmit two SDI signals (6G/3G/HD/SD-SDI) over 75ohms coaxial cables via HD-BNC connectors.
The cable drivers inside is SMPTE compliant video SFP (emSFP) automatically selects the slew rates in order to achieve compliance to SMPTE formats.

  • ST-2081/ST-424/ST-292/ST-259 compliant
  • Supports video pathological patterns at all specified rates
  • HD-BNC connector type
  • Control via serial interface includes:
  • Voltage & temperature monitoring
  • Module information
  • Hot pluggable and Hot removable with cable/fiber plug in
  • Operating temperatures range from 0C to 70C, contact us for Industrial range
  • Single supply +3.3V
  • 58.5mm x 13.4mm x 8.6mm SFP/SFP+ package
  • High-density and future-proof architecture
  • Pathological signal support
  • Superior jitter management and signal regeneration
  • Monitoring and diagnostics at the edge of your product via serial communication
  • EB59HD2T-SN
  • NEW PN 12G adaptor
  • em2x2

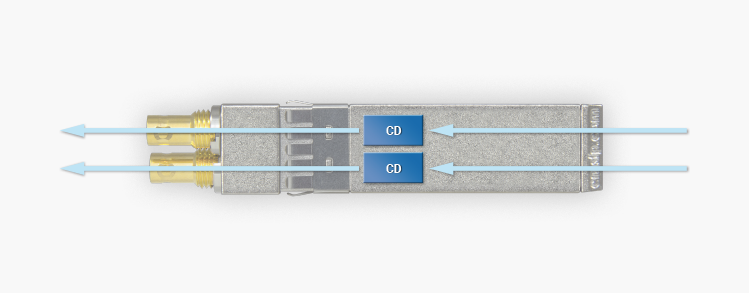

BLOCK DIAGRAM

OBSOLETE025 Block Diagram
