3G/HD/SD-SDI/ASI VIDEO COAXIAL SFP (emSFP)

OBSOLETE029

3G/HD/SD/ASI video SFP (emSFP) coaxial, dual receiver, medium reach, non-MSA, DIN 1.0/2.3

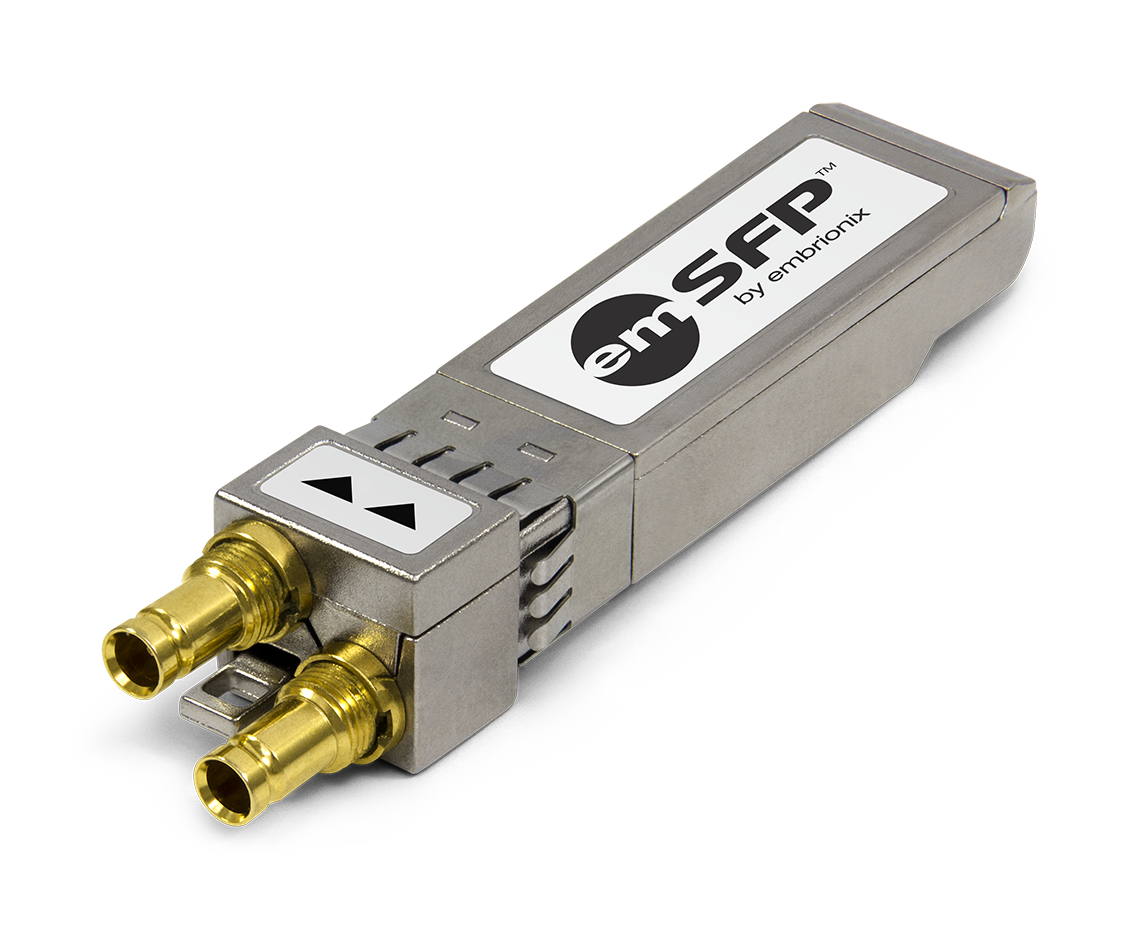

The video SFP (emSFP) EB30CS2R-MN is a medium reach coaxial video SFP (emSFP) .
This SFP (emSFP) is specifically design to support pathological test patterns.
This SFP (emSFP) is designed to receive two SDI signals (3G/HD/SD-SDI/ASI) over 75ohms coaxial cables via DIN 1.0/2.3 connectors.
The equalizer inside this SMPTE compliant video SFP (emSFP) features the DC restoration to compensate for the DC content of the SMPTE pathological test patterns.

  • ST-424/ST-292/ST-259/DVB-ASI compliant
  • Supports video pathological patterns at all specified rates
  • DIN 1.0/2.3 connector type
  • Control via serial interface includes:
  • Voltage & temperature monitoring
  • Module information
  • Hot pluggable and Hot removable with cable/fiber plug in
  • Operating temperatures range from 0C to 70C, contact us for Industrial range
  • Single supply +3.3V
  • 58.5mm x 13.4mm x 8.6mm SFP/SFP+ package
  • High-density and future-proof architecture
  • Pathological signal support
  • Superior jitter management and signal regeneration
  • Monitoring and diagnostics at the edge of your product via serial communication
  • EB30CS2R-MN
  • EB00CA01-03A
  • EB00CB01-24A
  • EB00MC01-001
  • em2x2

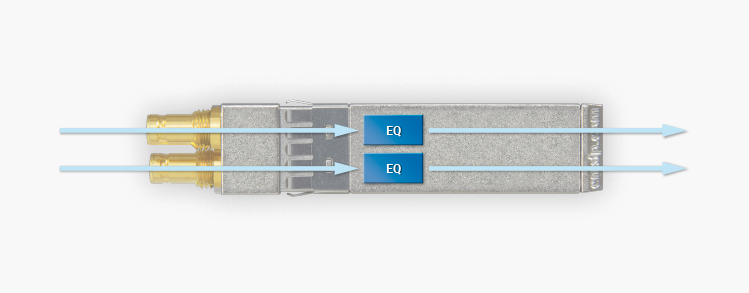

BLOCK DIAGRAM
