IP – SDI Gateways (emSFP)

OBSOLETE037

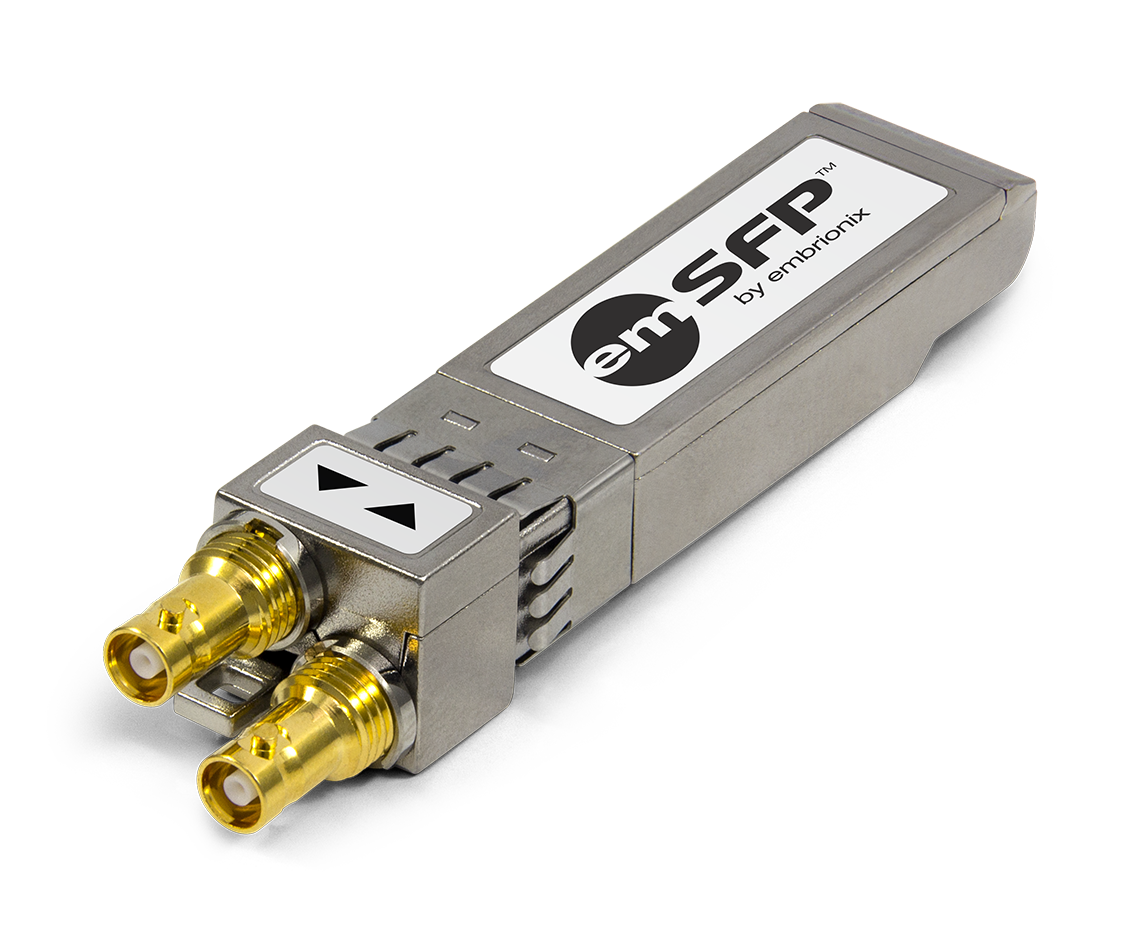

ST-2022-6 encapsulator Dual SDI RX up to 3G-SDI - 10GBASE-X host, MSA, HD-BNC

The ST-2022-6/7 emSFP™ dual encapsulator SDI-to-IP gateway designed to encapsulate two SDI signal input to a ST-2022-6/7 stream.
The ST-2022-6/7 emSFP™ (IP host) has a 10GE (10GBASE-X) host connection which can be used inside IP routers and switches.

  • Unmatched integration
  • SDI and IP signals integrated into COTS (up to 96 gateways)
  • Zero additional footprint
  • Modularity by one channel
  • Future-proof format flexible agility
  • Low power consumption
  • Interoperability made easy
  • Resolves interoperability between multiple formats/standards
  • Supports of ST-2022, AIMS TR-03, AES67 and ASPEN
  • Encoding & Decoding of compressed signals such as JPEG-2000, VC-2* and Tico*.
  • Simplified setup and control
  • Zero setup via standardized auto-discovery mechanism
  • Simple Restful API for third party control system
  • High-density and future-proof architecture
  • Small form factor direct utilization in COTS
  • Pathological signal support
  • Monitoring and diagnostics at the edge of your product via API
  • In field updatable
  • Discovery mechanism (NMOS)
  • Automatic assignments of IP addresses (DHCP)
  • EB22HDRT-LM-0514
  • Related Accessories
  • EB00CA02-03A
  • EB00CA02-24A
  • EB00CA02-36A
  • EB00CB02-04A
  • EB00CB02-06A
  • EB00MC02-001
  • em2x2

BLOCK DIAGRAM

OBSOLETE037 Block Diagram

OBSOLETE037
