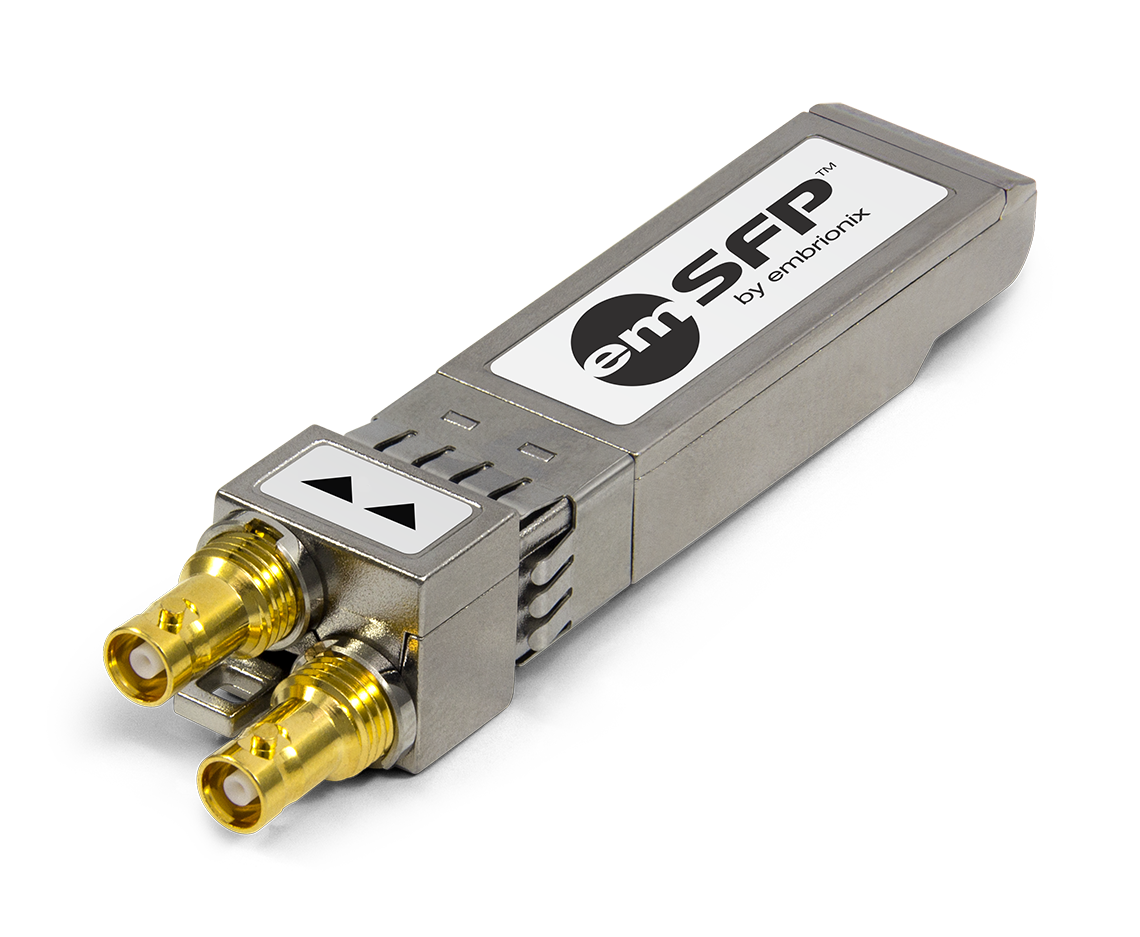

COMPOSITE (CVBS) TO SDI CONVERTER SFP (emSFP)

OBSOLETE046

Composite (CVBS) to SDI video SFP (emSFP) converter, dual receiver, NON-MSA, HD-BNC. Replacement part EB30HD2R-AN2. Not recommended for new design

The video SFP EB30HD2R-AN is an NTSC/PAL video SFP (emSFP ) converter module. This video SFP module is designed to convert composite (NTSC/PAL) over 75Ω coaxial cables via HD-BNC connectors to SD-SDI signals. The video SFP module is carefully designed to accept composite stressful patterns.

  • SMPTE 259M-C compliant
  • HD-BNC connectors (75Ω)
  • Supported Composite Standards:
  • NTSC M, NTSC J, NTSC 4.43
  • PAL B/G/H/I/D, PAL M, PAL N, PAL 60
  • Rx Channel: 10-bit Composite to SD-SDI video decoder
  • 4x Oversampling (54Mhz)
  • Test Pattern Generation
  • Control via serial interface includes:
  • Voltage & Temperature Monitoring
  • Module Information
  • Analog Status and Control registers
  • Low Power Consumption - typical 1027mW
  • Single Supply +3.3V 58.5mm x 13.4mm x 8.6mm SFP Package
  • High-density, 2 independent composite converters
  • Legacy support with Non-MSA video cage Pathological signal support Superior jitter management and signal regeneration Monitoring and diagnostics at the edge of your product via serial communication
  • EB30HD2R-AN
  • EB00CA02-03A
  • EB00CA02-24A
  • EB00CA02-36A
  • EB00CB02-04A
  • EB00CB02-06A
  • EB00MC02-001
  • em2x2

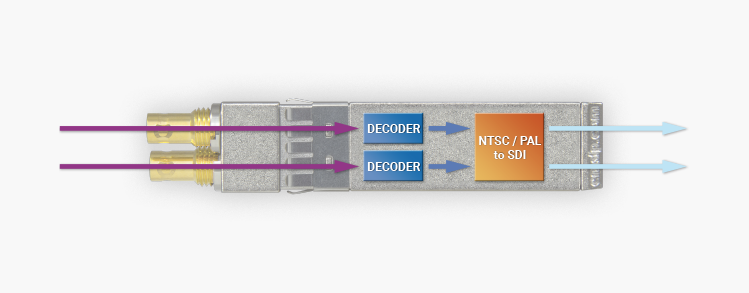

BLOCK DIAGRAM

OBSOLETE046 Block Diagram
