IP – SDI Gateways (emSFP)

OBSOLETE051

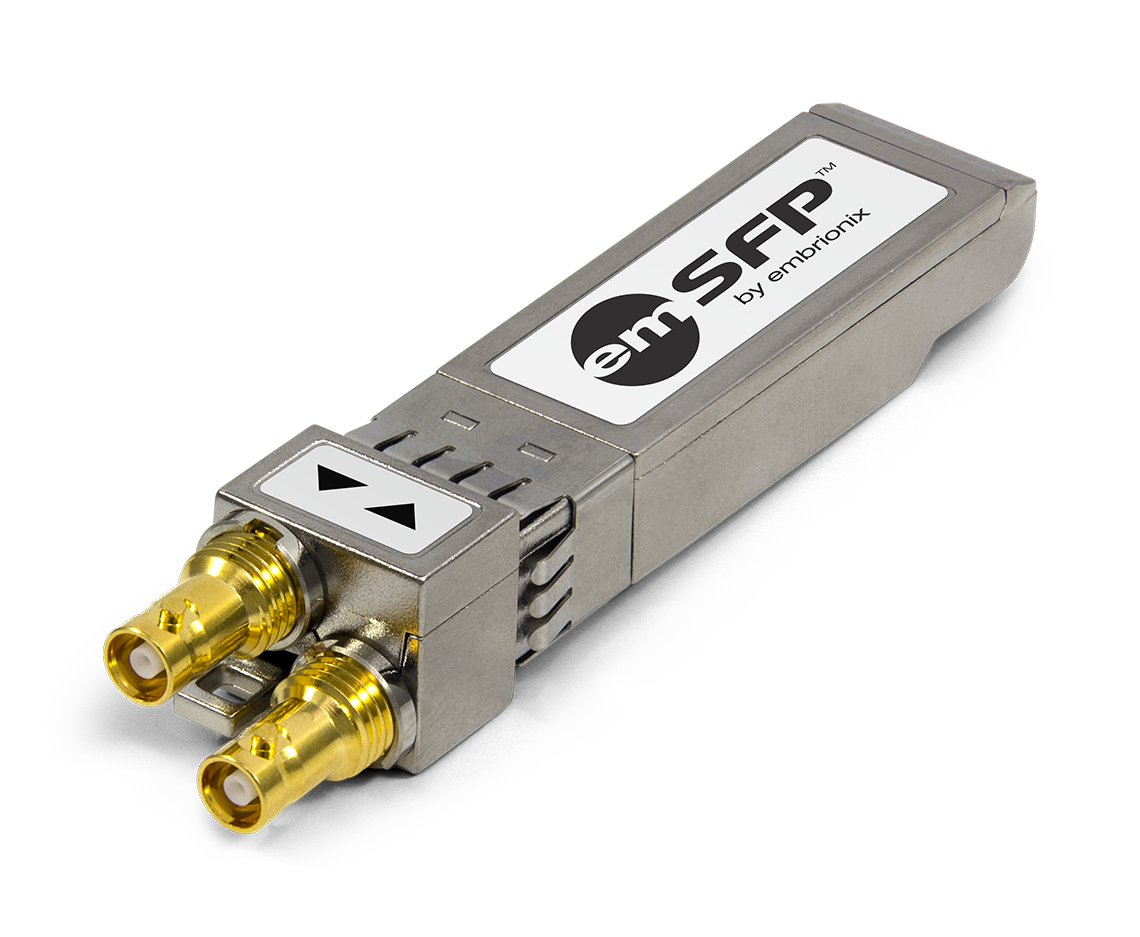

ST2022-6 Dual de-encapsulator, dual SDI TX up to 3G-SDI - 10GBASE-X host

The ST2022-6 Dual de-encapsulator emSFP module is designed to convert a 2022-6 stream to two output on HD-BNC. The stream can contain two independant streams (SD-SDI, HD-SDI, 3G-SDI) format. The 2022-6 stream is present on the host connector at 10GE (compliant with 10GBASE-X).
The ST 2022-6 Dual de-encapsulator emSFP (10GBASE-X on host) could be used directly with 10GE switches and routers.

** Please contact factory@embrionix.com for availability.

  • Unmatched integration
  • SDI and IP signals integrated into COTS (up to 96 gateways)
  • Zero additional footprint
  • Modularity by one channel
  • Future-proof format flexible agility
  • Low power consumption
  • Interoperability made easy
  • Resolves interoperability between multiple formats/standards
  • Supports of ST-2022, AIMS TR-03, AES67 and ASPEN
  • Encoding & Decoding of compressed signals such as JPEG-2000, VC-2* and Tico*.
  • Simplified setup and control
  • Zero setup via standardized auto-discovery mechanism
  • Simple Restful API for third party control system
  • High-density and future-proof architecture
  • Small form factor direct utilization in COTS
  • Pathological signal support
  • Monitoring and diagnostics at the edge of your product via API
  • In field updatable
  • Discovery mechanism (NMOS)
  • Automatic assignments of IP addresses (DHCP)
  • EB22HDRT-LM-0516
  • emOPT-1D-2022-6 (software for single decapsulator 2022-6)
  • emOPT-2D-2022-6 (software for dual decapsulator 2022-6)
  • Related Accessories
  • EB00CA02-03A
  • EB00CA02-24A
  • EB00CA02-36A
  • EB00CB02-04A
  • EB00CB02-06A
  • EB00MC02-001
  • em2x2
