EXTENDERS and CONVERTERS (emEXTEND)

OBSOLETE084

HDMI Extender Over Fiber (Receiver), 1310nm, Singlemode, LC/PC

The emEXTEND-HDMI-SM-RX is a miniature converter device that converts SDI over fiber to HDMI. The converter can be used as part of an HDMI over fiber optical extender when paired with the emEXTEND-DMI-SM-TX device. The device can accept SDI signals in many different resolutions. The image will be mapped automatically in a center of a 1920 x 1080 progressing scan raster. The first audio pair connects to the HDMI output. No configuration required.

  • HDMI & 3G/HD/SD-SDI compliant
  • Fully SMPTE compliant
  • Supports video pathological patterns at all specified rates
  • LC connector type & HDMI type D connector with retaining mechanism
  • Hot pluggable and Hot removable with cable/fiber plug in
  • Operating temperatures range from 0C to 40C, contact us for Industrial range
  • Redundant power supply circuit
  • 58.5mm x 13.4mm x 8.6mm SFP/SFP+ package
  • Vibration resistant
  • Small form factor easily mountable at the back of a monitor
  • Enables connection of HDMI over kilometers of distance
  • Modular design, can easily re-use components for other purposes
  • emEXTEND-DMI-SM-RX
  • emEXTEND-DMI-SM-TX
  • emEXTEND-DMI-SM
  • EB00CC04-02C
  • EB00CC05-02C
  • EB00CE04-15C
  • EB00CE04-25C-NL
  • EB00CD03-01S
  • EB00CD04-01S

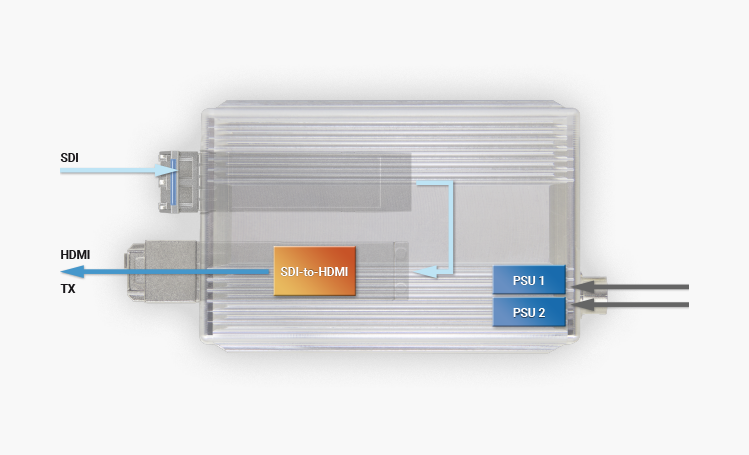

BLOCK DIAGRAM

OBSOLETE084 Block Diagram
