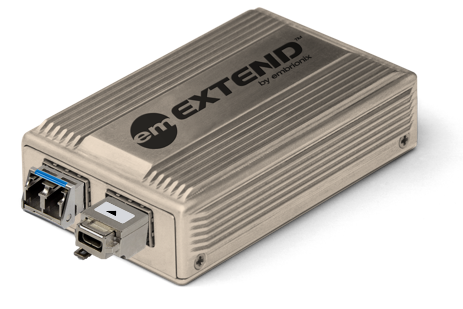

HDMI Extender Over Fiber (Transmitter), 1310nm, Singlemode, LC/PC

The emEXTEND-HDMI-SM-TX is a miniature converter device that converts HDMI to SDI over fiber optic. The converter can be used as part of an HDMI over fiber optical extender when paired with the emEXTEND-DMI-SM-RX device. The device accepts any HDMI type resolution at the input and generates an SDI signal automatically. The first 8 audio pairs are embedded into the SDI signal. No configuration required.

  • HDMI & 3G/HD/SD-SDI compliant
  • Fully SMPTE compliant
  • Supports video pathological patterns at all specified rates
  • LC connector type & HDMI type D connector with retaining mechanism
  • Hot pluggable and Hot removable with cable/fiber plug in
  • Operating temperatures range from 0C to 40C, contact us for Industrial range
  • Redundant power supply circuit
  • 58.5mm x 13.4mm x 8.6mm SFP/SFP+ package
  • Vibration resistant
  • Small form factor easily mountable at the back of a monitor
  • Enables connection of HDMI over kilometers of distance
  • Modular design, can easily re-use components for other purposes
  • emEXTEND-DMI-SM-RX
  • emEXTEND-DMI-SM-TX
  • emEXTEND-DMI-SM
  • EB00CC04-02C
  • EB00CC05-02C
  • EB00CE04-15C
  • EB00CE04-25C-NL
  • EB00CD03-01S
  • EB00CD04-01S

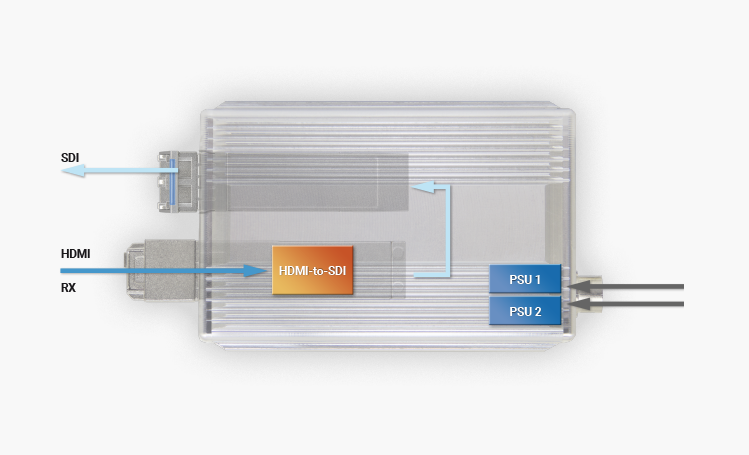

BLOCK DIAGRAM

OBSOLETE085 Block Diagram
