EXTENDERS and CONVERTERS (emEXTEND)

OBSOLETE103

Dual SDI (SD/HD/3G) Extender Over Fiber (Receiver), Singlemode, LC/PC

The emEXTEND-SDI-D-SM-RX is a miniature converter device that converts Optical to Electrical 3G SDI. The converter can be used as part of an 3G SDI over fiber optical extender when paired with the emEXTEND-1SDI-D-SM-TX device. The device accepts any SD/HD-SDI, 3G, 12G SDI signals. No configuration required.

  • 3G/HD/SD-SDI compliant
  • Fully SMPTE compliant
  • Supports video pathological patterns at all specified rates
  • LC connector type & HDMI type D connector with retaining mechanism
  • Hot pluggable and Hot removable with cable/fiber plug in
  • Operating temperatures range from 0C to 40C, contact us for Industrial range
  • Redundant power supply circuit
  • 58.5mm x 13.4mm x 8.6mm SFP/SFP+ package
  • Vibration resistant
  • Small form factor easily mountable at the back of a monitor
  • Enables connection of HDMI over kilometers of distance
  • Modular design, can easily re-use components for other purposes
  • emEXTEND-SDI-D-SM-RX
  • emEXTEND-SDI-D-SM-TX
  • emEXTEND-HDMI-SM-TX
  • EB00CC04-02C
  • EB00CC05-02C
  • EB00CE04-15C
  • EB00CA02-03A
  • EB00CA02-24A
  • EB00CC04-02C
  • EB00CC05-02C

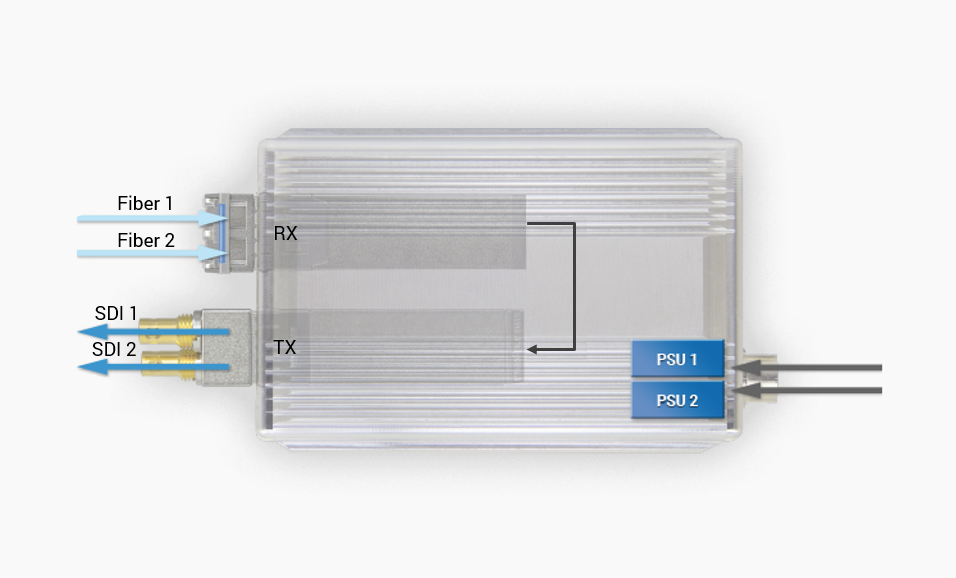

BLOCK DIAGRAM

OBSOLETE103 Block Diagram
