IP – SDI Gateways (emSFP)

OBSOLETE112

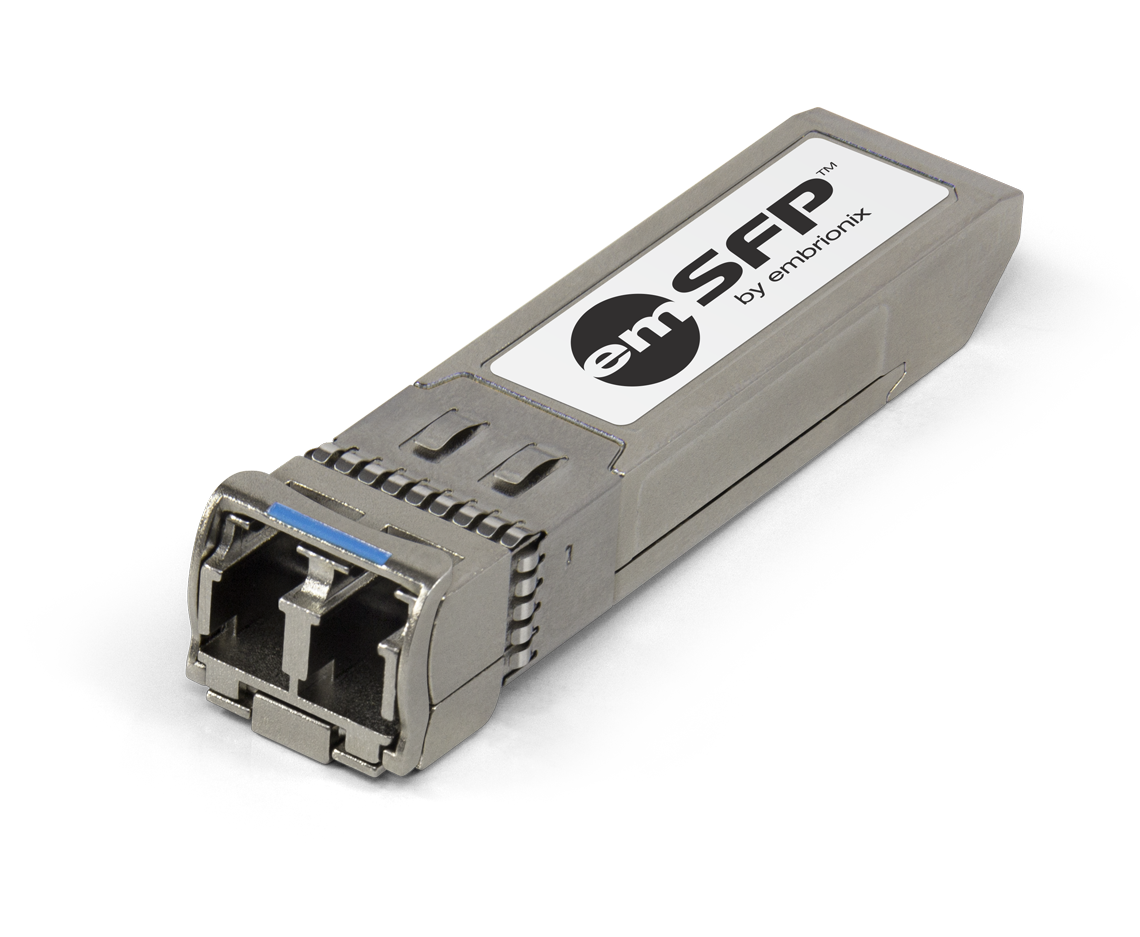

ST 2022-6 encoder 10GBASE-LR - dual TX SDI on host

The ST-2022-6 encoder emSFP module is designed to convert up to two transmitted signals on host connector to a 2022-6 stream over 10GE fiber port (10GBASE-LR). The output can be SD-SDI, HD-SDI, 3G-SDI. The 2022-6 stream is present on the fiber connection at 10GE (compliant with 10GBASE-LR).


The ST-2022-6 emSFPTM (SDI on host) has a 10GE (10GBase-LR) port to be used directly with SDI products and the output can be connected directly to IP switches and routers.

** Please contact factory@embrionix.com for availability.

  • Unmatched integration
  • SDI and IP signals integrated into video equipment (up to 96 gateways)
  • Zero additional footprint
  • Modularity by one channel
  • Future-proof format flexible agility
  • Low power consumption
  • Interoperability made easy
  • Resolves interoperability between multiple formats/standards and facilitate the IP transition by leveraging your legacy equipment.
  • Supports of ST-2022-6
  • Simplified setup and control
  • Minimal setup via standardized auto-discovery mechanism
  • Simple Restful API for third party control system
  • High-density and future-proof architecture
  • Smooth transition to IP
  • Small form factor direct utilization in COTS
  • Pathological signal support
  • Monitoring and diagnostics at the edge of your product via API
  • In field updatable
  • Discovery mechanism (NMOS)
  • Automatic assignments of IP addresses (DHCP)
  • EB22LC2T-LN-0202-02
  • EB22LC1R-SN-0202-02
  • EB22LC1T-SN-0202-02
  • EB22LC2R-SN-0202-02
  • EB22LC2T-SN-0202-02
  • EB00CD03-01S
  • EB00TL01-00
  • EB00TL02-00
  • EB00TL03-00
  • em2x2

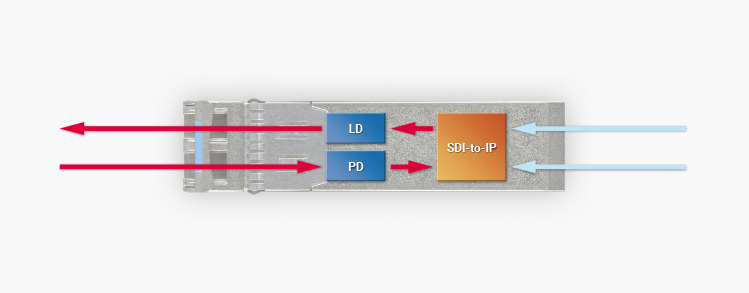

BLOCK DIAGRAM
