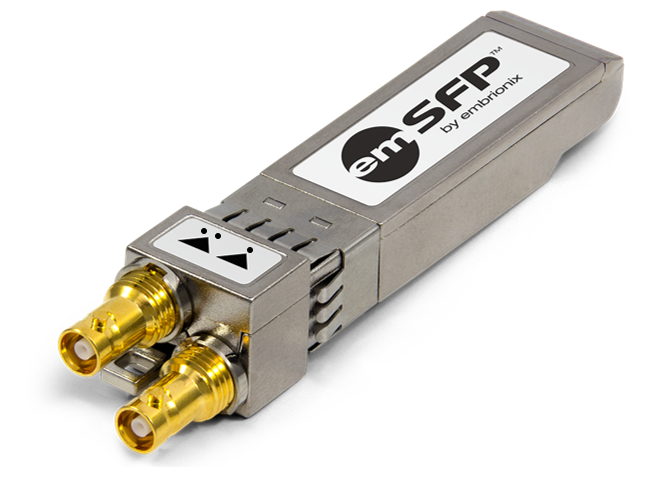

The ST2110 Encapsulator Gateway converts two SDI signals into IP ST2110 set of flows. The miniature plugin device (SFP+) is installed inside the IP switch and will receive the SDI on the connector side to provide IP on the host to the IP Switch.

ST2110 encapsulation:
The ST2110 Encapsulator supports one Video and ANCILARY data flows (ST2110-20, ST2110-40) and 8 Audio flows (ST2110-30). Audio mapping is available through an internal 16x128 audio channel matrix.
SDI input feeds can be free run and frame sync via an optional frame synchronizer.
Reconfigurable:
The emSFP can store up to 4 software options that can be loaded at any time via a simple command.

** Please contact factory@embrionix.com for availability.
