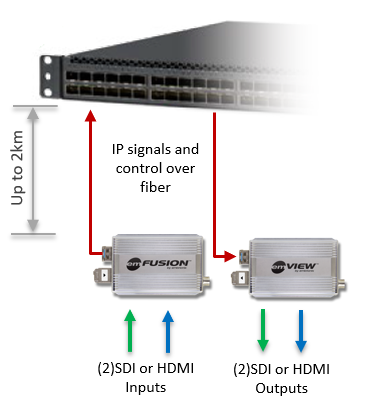

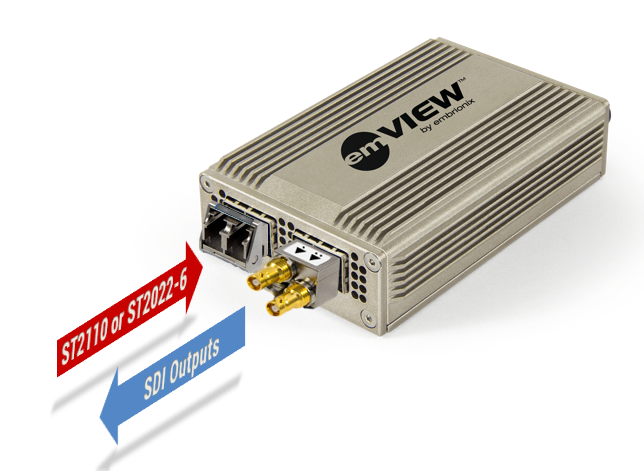

The emVIEW-SDI standalone IP Gateway De-encapsulator converts two IP flows from the optical connector into SDI. A single fiber optic link is required to send ST2022-6 IP signals plus in-band control for a full optimization of cabling between the switch and your device.

Reconfigurable:
The modular design of the miniature frame allows the re-use of Software Defined emSFPs and can store up to 4 software options that can be loaded at any time via a simple command.

For ST2110 encapsulation or de-encapsulation, we recommend the use of the new UHD platform available through emFUSION-3-U and emFUSION-6-U

** Please contact factory@embrionix.com for availability.
