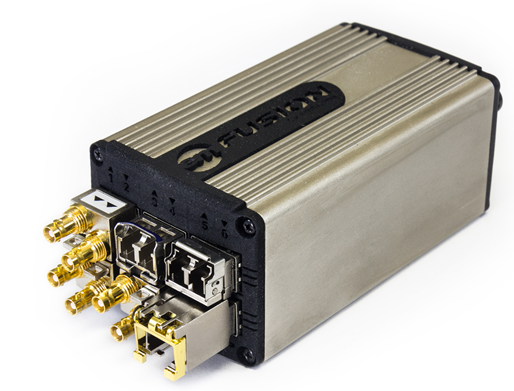

Compact, modular SDI & HDMI signal ST2110 bulk Gateway

Perfect for remote control applications, the emFUSION-6 is a versatile standalone gateway that can be configured with your selection of inputs and outputs from our range of emSFP modules. The bulk gateway is capable of treating up to 8 x gateway conversions for HD/3G signals or 4 x in UHD.

The compact emFUSION-6 optimizes a 25GE link to drive 2 x UHD or up to 4 x HDMI 1080p display monitors over IP without compromising framerate or resolution. Optional clean and quiet switching is available on de-encapsulation.
This low-footprint, light-weight and versatile gateway can also be easily reconfigured to permit up to 3x channels encapsulation and 3x channels de-encapsulation. Signal return is then carried out over just one fiber link ̶ reducing extensive cabling and streamlining costs. Hitless redundancy (ST2022-7) can also be provided through dual network connectivity, and optional frame synchronization on encapsulation eliminates the need for genlocking cameras.
The emFUSION-6 hangs neatly and practically off the back of a display monitor and easy control is achieved through Ember+, RESTful or NMOS protocols.

ST2110 encapsulation:
The ST2110 Encapsulator supports one video and ancillary data flows (ST2110-20, ST2110-40) and 8 x audio flows (ST2110-30). Audio mapping is available through an internal 16x128 audio channel matrix.
SDI input feeds can be free-run and frame sync is available via an optional frame synchronizer.

ST2110 de-encapsulation:
The ST2110 de-encapsulator supports one video and ancillary data flows (ST2110-20, ST2110-40) and 4 x audio flows (ST2110-30). Audio shuffling and breakaway is available through an internal 128x16 audio channel matrix.


Reconfigurable:
The modular and software-defined design of the miniature frame allows for storage of up to 4 x software options that can be loaded at any time via a simple command.
The standalone converters are available in 2 x configurations: providing 2x 25GE aggregation links, and 4 selectable emSFP I/O modules or providing 2x 25GE aggregation links, 1x RG45 control port and 3 selectable emSFP I/O modules.

** Please contact factory@embrionix.com for availability.

  • Up to 8 configurable UHD ST2110 Gateways inside
  • Two 25GE aggregation ports for link redundancy
  • Miniature frame can be installed at the back of your monitor
  • Auto-sensing of HD/3G and 12G formats
  • Dual NIC interface
  • Available in multimode or singlemode fiber
  • Future-proofed format agility
  • Low power consumption
  • Upgradable to various encapsulation formats
  • Simplified setup and control
  • Simple Restful API for third party control system
  • Future-proof investment (Software Defined emSFP)
  • Fully resilient signal flow
  • Low cost conversion for an easy transition to IP
  • Space, power and weight economies
  • In field, software up-gradable
  • Platforms:
  • emFUSION-S6-U-7-31-MM [Standalone IP Converter w/ 3x Selectable I/O Modules, 1x CTRL 2x NET 850nm MM LC/PC, (25GE) ]
  • emFUSION-S6-U-7-31-SM [Standalone IP Converter w/ 3x Selectable I/O Modules, 1x CTRL 2x NET 1310nm MM LC/PC, (25GE) ]
  • emFUSION-S6-U-7-4-MM [Standalone IP Converter w/ 4x Selectable I/O Modules, 2x NET 850nm MM LC/PC, (25GE) ]
  • emFUSION-S6-U-7-4-SM [Standalone IP Converter w/ 4x Selectable I/O Modules, 2x NET 1310nm SM LC/PC, (25GE) ]
  • Software Options:
  • emOPT-emBOX6-U-3E3D-2110-C [emBOX6 Software Option 3x Encap, 3x Decap, 1x Ctrl ports]
  • emOPT-emBOX6-U-4E4D-2110 [emBOX6 Software Option 4x Encap, 4x Decap ports]
  • Software Add-on:
  • emOPT-4E-2110-FS [2110 Encapsulation Frame Sync Add-on]
  • emOPT-4D-2110-CS [2110 De-Encapsulation Clean Switching Add-on]
  • emSFP I/O modules selection:
  • EB34TD1T-SM [HDMI/DVI Transmitter, 8ch AES (HDMI), MSA, Type D ]
  • EB34TD1R-SM [HDMI/DVI Receiver, 2ch AES (HDMI), MSA, Type D ]
  • EB30HDRT-MM [3G SDI Coaxial Transceiver, MSA, HD-BNC]
  • EB35TD1T-SM [12G/3G/HD-SDI to HDMI 2.0/DVI Transmitter, 8 audio ch (HDMI), MSA, Type D ]
  • EB12HDRT-MMR [12G SDI SFP Coaxial Transceiver, Reclocker, MSA, HD-BNC]
  • Power Supply And Bracket:
  • Eem2PS-30 [Power supply for the miniature frame (30w)]
  • em2PS-RED-30 [Redundant power supply for Standalone frames (Requires one em2PS-30)]
  • EmBOX-MBR-18 [EmBOX Rackmount Bracket Supporting 18 EmBOX (2RU)]
  • Accessories:
  • EB00CC04-02C
  • HDMI Type D To HDMI Type A Cable Assembly, 2m Long, 3G/HD/SD/ASI Capable
  • EB00CC05-02C
  • HDMI TYPE D TO DVI PLUG Cable Assembly, 2m Long, 3G/HD/SD/ASI Capable
  • EB00CE04-15C
  • HDMI-D Plug To HDMI-A Plug, 15 Centimeters, 3G/HD/SD/ASI Capable
  • EB00CE04-25C-NL
  • HDMI-D Plug To HDMI-A Plug , 25 Centimeters, No Lock On HDMI-A, 3G/HD/SD Capable
  • EB00CD04-01S
  • Fiber Optic Cable, LC/LC, Single Mode, Duplex - 1 Meter (9/125 Type) , 12G/6G/3G/HD/SD/ASI Capable
  • EB00TL01-00
  • One Clic SFP/SFP+ Cleaner
  • EB00TL02-00
  • Fiber Patch Cord Cleaner

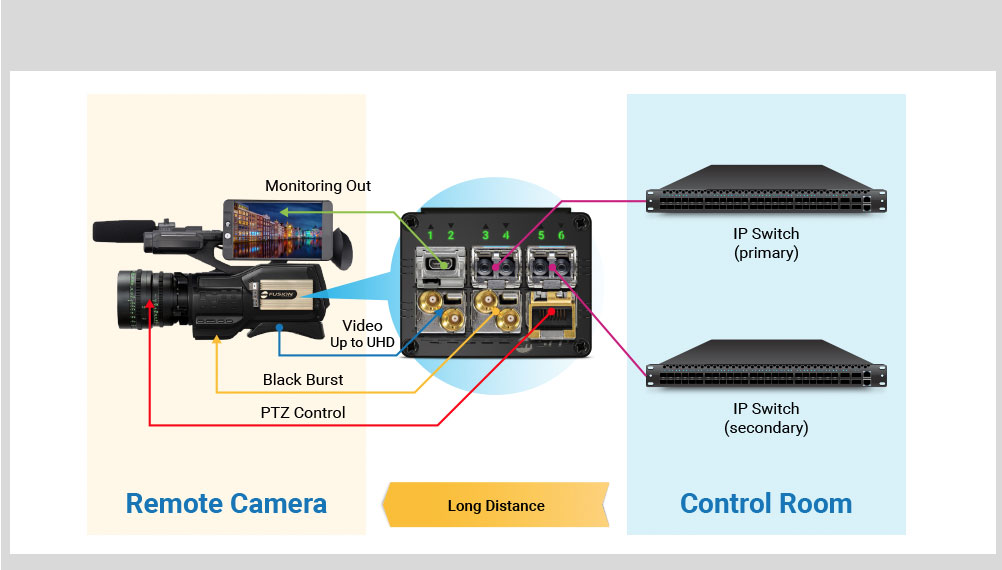

BLOCK DIAGRAM

OBSOLETE142 Block Diagram
