ST2110 IP Multiviewer With 16 images

The emSFP-based multiviewer uses the emSFP Software-defined SFP building blocks to create a 16-image mosaic from ST2110 IP streams. The multiviewer provides 4x quadrants of quad-split views delivered with high quality scaling engines revealing fine image details.

Use 4x emSFP with the pre-processing options and either one extra emSFP with the quad option for a ST2110 mosaic or the emQUAD to render your mosaic in SDI or in HDMI at your display.

The multiviewer provides dynamic tallies and UMD and can be controlled via NMOS, Ember+ or the Embrionix RESTful API.

** Please contact factory@embrionix.com for availability.

  • 16 x ST2110 video streams
  • Available ST2110 mosaic output or SDI/HDMI output at the display
  • High-quality multi-tap scaling engine
  • Auto-sensing of SD-SDI to HD-SDI at 50/59.94hz
  • Available with HDMI or SDI outputs at 1920x1080 50/59.94Hz
  • A single fiber connection carrying IP streams and control
  • Small frame can be installed at the back of a monitor
  • Reduced wiring and cost by removing the need for extra HDMI extenders and ethernet cables
  • Zero rack space inside the equipment room
  • Converts inexpensive HDMI monitors into IP ST2110 capable monitors
  • Pre-scaling stage:
  • Use 4x emSFP modules:
  • EB22PPRT-M [Software Defined emSFP, MSA, Processing Plugin -10GE IP host]
  • Install 4x pre-processing options:
  • emOPT-QUAD-PRE [Pre-Process Quad Split Option]
  • Mosaic rendering using standalone module:
  • emQUAD-DMI-MM [IP Quad split multiviewer to HDMI, 850nm Multimode, LC/PC]
  • emQUAD-SDI-MM [IP Quad split multiviewer to SDI, 850nm Multimode, LC/PC]
  • Or
  • Mosaic Rendering using emSFP:
  • EB22PPRT-M [Software Defined emSFP, MSA, Processing Plugin -10GE IP host]
  • EB22HDRT-LM-0516 [Software Defined emSFP (2x Receiver), MSA, HD-BNC - 10GE IP host]
  • Quad software option:
  • emOPT-QUAD-IPS [Quad Split Processor Option w/IP Stream Mosaic]
  • emOPT-QUAD [Quad Split Processor Option w/SDI output]
  • Power supply and brackets:
  • em2PS [Power supply for the miniature frame]
  • emPS-RED [Redundant power supply for em2x2-2 (Requires the em2PS)]
  • em2PS-30 [Power supply for the miniature frame (30w)]
  • em2PS-RED-30 [Redundant power supply for Standalone frames (Requires one em2PS-30)]
  • emBOX-MBR-18 [emBOX rackmount bracket supporting 18 emBOX (2RU)]
  • Cables:
  • EB00CC04-02C [HDMI type D to A, cable adaptor with retention clip 2m]
  • EB00CA02-24A [HD-BNC Plug (M) to BNC Jack (F) Cable adaptor, 24 in Belden 1855A]

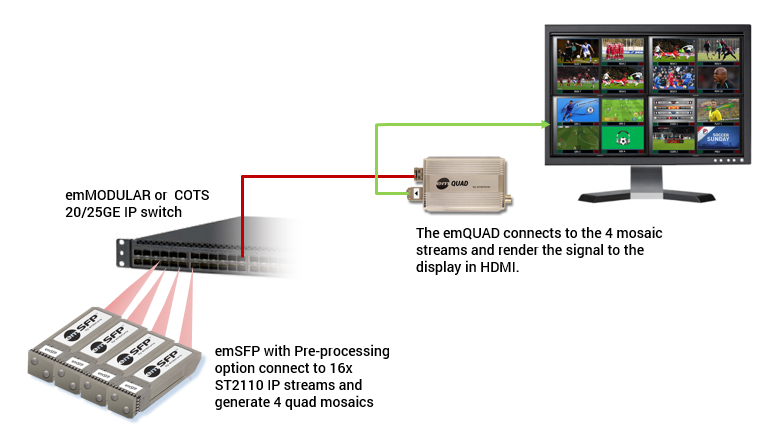

BLOCK DIAGRAM
