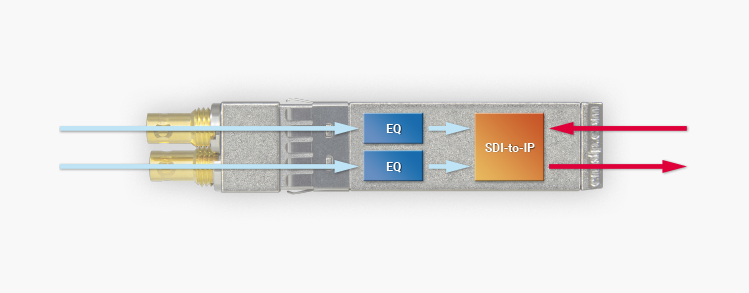

TThe ST2110 UHD emSFP Dual Encapsulator can be installed inside the emMODULAR frame or in any 25GE IP switch. The processor provides 2 channels of encapsulation from any HD/3G/12G SDI signal to ST2110 IP streams.

ST2110 encapsulation:
The ST2110 encapsulator supports one (1 x) video, ancillary data flows (ST2110-20, ST2110-40) and 8 x audio flows (ST2110-30). Audio mapping is available through an internal 16x128 audio channel matrix.

SDI input feeds can be free-run and frame sync carried out via an optional frame synchronizer.

Reconfigurable:
The modular design of the miniature frame allows the re-use of software-defined emSFPs and can store up to 4 x software options that can be loaded at any time via a simple command.

** Please contact factory@embrionix.com for availability.
