***IP PROCESSING SOLUTIONS

OBSOLETE158

All-IP Core Infrastructure & Media Signal Processing Hub w/32 slots and 1800GE aggregation (Frame w/single Power Supply)

The emVIRTU All-IP Core Infrastructure and Processing Platform provides an extremely dense array of Embrionix software-defined emSFP IP processors in just 1RU. Designed to address media signal processing and SDI to IP conversion for mission-critical and HD-up-to-UHD IP production environments, the platform allows users to build their key advanced processing power modularly, as their needs grow!

  • 8 clusters of 4 x emSFP processors
  • Each cluster offers dual aggregation links for ST2022-7 support
  • Selectable network interfaces w/100GE, 40GE
  • Software-selectable processes including: up/down/cross conversion, down converter, clean switching, color correction, quad split multiviewer, quad links to single link flow conversion
  • Can be used as a Bulk Gateway with 64 UHD Gateways per 1RU
  • Virtualized! Fits anywhere!
  • Optimize bandwidth to your core
  • Virtually no point of failure
  • Passive hub = full resiliency
  • Support for SD-up-to-UHD IP production
  • Modular - build as you grow!
  • Minimize OPEX!
  • Highly robust solution - Redundant power supplies & full support of ST2022-7
  • Frame Options:
  • emVIRTU-32-1600-FR [IP Media Signals Processing Hub w/32 slots and 1800GE aggregation capacity w/Front to Rear ventilation (Frame w/single Power Supply)]
  • emVIRTU-32-1600-RF [IP Media Signals Processing Hub w/32 slots and 1800GE aggregation capacity (Frame w/single Power Supply)]
  • PSU options:
  • emVIRTU-PSU-FR [emVIRTU Additional Hot Swappable Power Supply w/Front to Rear ventilation]
  • emVIRTU-PSU-RF [emVIRTU Additional Hot Swappable Power Supply w/Rear to Front ventilation]

BLOCK DIAGRAM

OBSOLETE158 Block Diagram

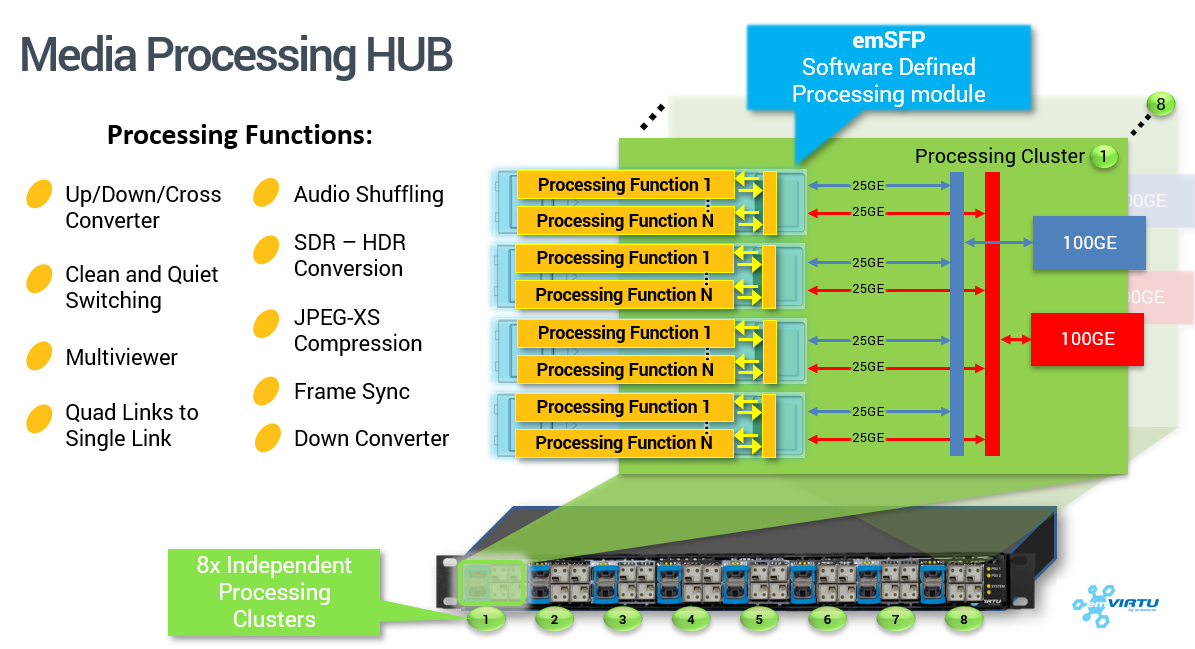

BLOCK DIAGRAM

OBSOLETE158 Block Diagram
