Composite (CVBS) to SDI video SFP (emSFP) converter, dual receiver, NON-MSA, DIN 1.0/2.3 - Not recommended for new design. Replacement part is EB30HD2R-AN2.

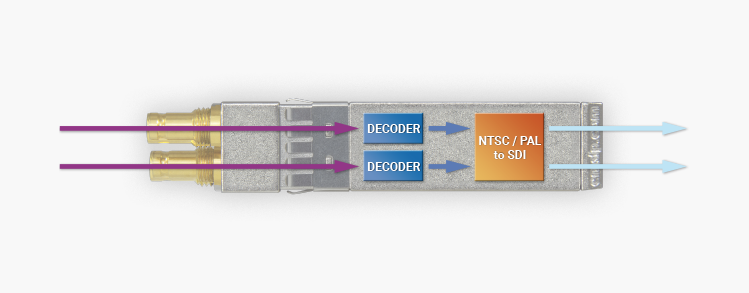

The CVBS emSFP family is designed to decode two composite signals over 75Ω coaxial cables via HD-BNC connectors. The module decodes NTSC/PAL composite inputs and convert them to SD-SDI signal.
ST 259M-C Compliant
Supported Composite Standards:
Supports video pathological patterns for SD-SDI, NTSC M, NTSC J, NTSC 4.43
PAL B/G/H/I/D, PAL M, PAL N, PAL 60
DIN 1.0/2.3 connectors (75 ohms)
Control and monitoring via serial interface includes:
- Input signal detection
- Voltage and temperature monitoring
- Module Information
RX Channel:
10-bit Composite to SD-SDI video decoder
4 x Oversampling (54Mhz)
Test Pattern Generation
Power consumption: typical 1.3 W
Single Supply +3.3V
56.6 mm x 13.4 mm x 8.6 mm SFP Package
Converts your legacy composite equipment to be SDI ready
Saves costs by reducing power consumption and physical space compared to dedicated Composite equipment
Highest density of composite gateway available on the market
Accepts any I/O type while keeping your system design budget under control
